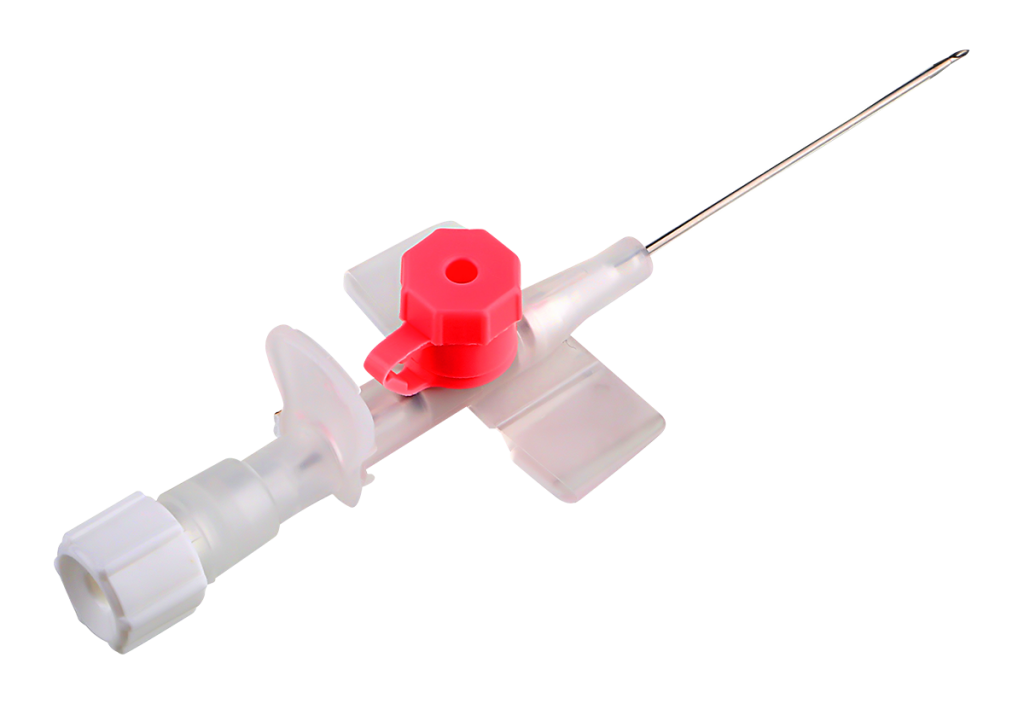

Primaflon

IV Cannula with wings and with Port.

Features and Benefits
  • Biocompatible radio opaque catheter for easy insertion and X-ray detection.
  • Siliconised needle for easy and confirm successful venipuncture with Instant Quick flash back.
  • Colour coded Injection port is provide for easy identification of Gauze size,
  • The injection port is provided with specially designed double hinged cap incorporating a recessed plug with a protective skirt to effectively prevent contamination when the valve is closed.
  • The injection Port has one way silicone retreating valve for extra medication by syringe without needle and to prevent back flow.
  • The double hinge port cap design does not obstruct during insertion and fixing and keep the cap closed effectively.
  • Flexible angled and grooved wings allows easy fixation and prevent displacement of cannula over the patient’s body.
  • Available in FEP/PTFE Catheter.
  • Single Use, Non Pyrogenic, Sterile
Specifications
Ref/Art No.GaugeColour CodeExt. Dia.
mm
Catheter
Length mm
Flow Rate
ml./min
Packing
Inner/Outer unit
IT0101-1414GOrange2.145300100/1000
IT0101-1616GGrey1.745200100/1000
IT0101-1717GWhite1.545140100/1000
IT0101-1818GGreen1.34590100/1000
IT0101-2020GPink1.13260100/1000
IT0101-2222GBlue0.92533100/1000
IT0101-2424GYellow0.71920100/1000
IT0101-2626GViolet0.61915100/1000
