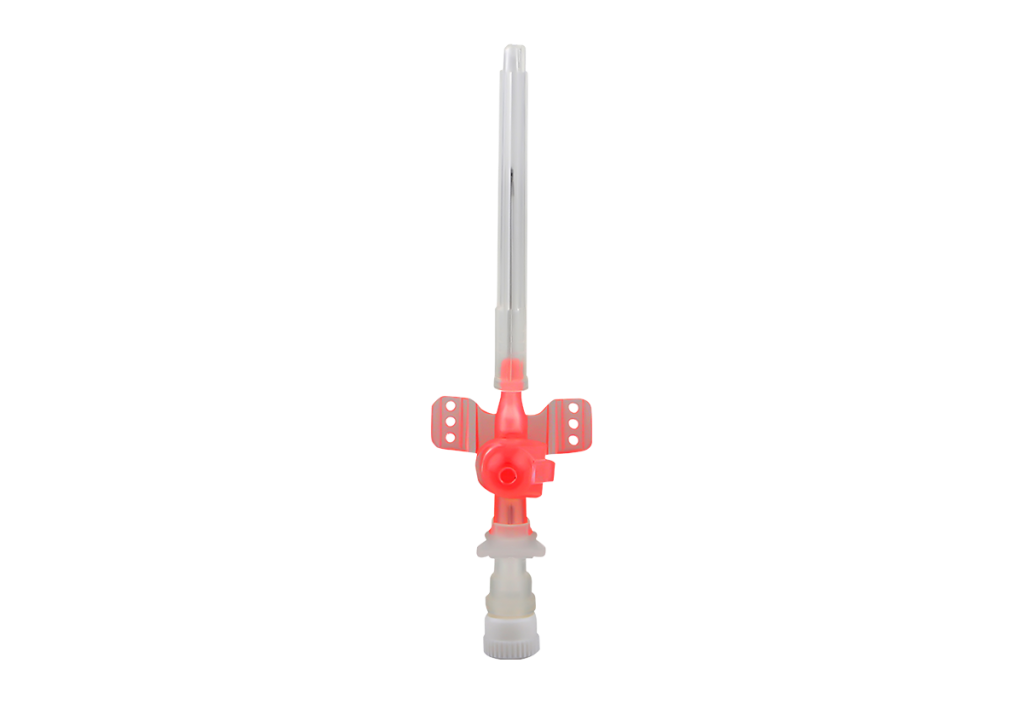

IV cannula with wings and with port.
Features and Benefits
- Biocompatible Polyurethane (PU) radio opaque catheter for easy insertion and X-ray detection.
- Siliconised Needle bevel provide smooth and successful venipuncture with instant Quick flash back confirmation.
- Colour coded body with suture hole wings for easy identification of Gauze size and proper fixation over patient’s body.
- Broad Tyvek Blister packing.
- Snap fit type port cap.
- The injection port is provided with specially designed double hinged cap incorporating a recessed plug with a protective skirt to effectively prevent contamination when the valve is closed.
- The injection Port has one way silicone retreating valve for extra medication by syringe without needle and to prevent back flow.
- The valve cap has special design to facilitate two point grip for cannulation.
- The double hinge port cap design does not obstruct during insertion and fixing and keep the cap closed effectively.
- Flexible angled and grooved wings with suture hole allows easy fixation and prevent displacement of cannula over the patient’s body.
- Single Use, Non Pyrogenic, Sterile.
Specifications
| Ref/Art No. | Gauge | Colour Code | Ext. Dia. mm | Catheter Length mm | Flow Rate ml./min | Packing Inner/Outer unit |
|---|---|---|---|---|---|---|
| IT0122-14 | 14G | Orange | 2.1 | 45 | 300 | 100/1000 |
| IT0122-16 | 16G | Grey | 1.7 | 45 | 200 | 100/1000 |
| IT0122-17 | 17G | White | 1.5 | 45 | 140 | 100/1000 |
| IT0122-18 | 18G | Green | 1.3 | 45 | 90 | 100/1000 |
| IT0122-20 | 20G | Pink | 1.1 | 32 | 60 | 100/1000 |
| IT0122-22 | 22G | Blue | 0.9 | 25 | 33 | 100/1000 |
| IT0122-24 | 24G | Yellow | 0.7 | 19 | 20 | 100/1000 |
| IT0122-26 | 26G | Violet | 0.6 | 19 | 15 | 100/1000 |
