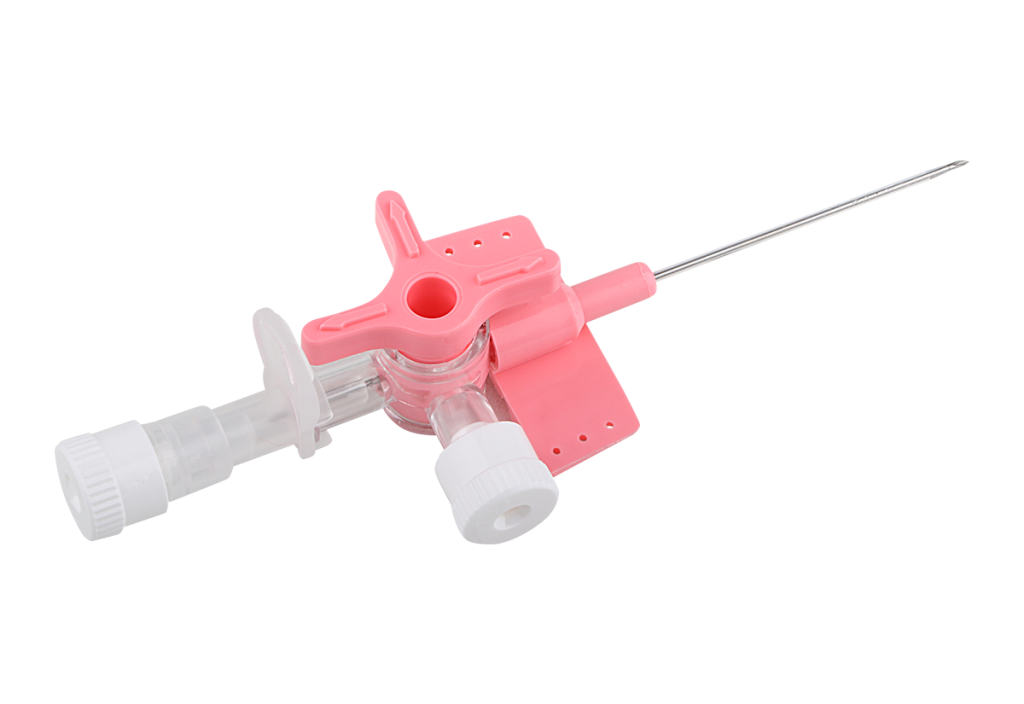

IV cannula with integrated 3 way stop cock.
Features and Benefits
- Biocompatible radio opaque catheter for easy insertion and X-ray detection.
- Instant quick flash back confirms successful venipuncture.
- Body with suture hole wings for easy fixation is also available.
- Flexible angled and grooved wings allows easy fixation and prevent displacement of cannula over the patient’s body.
- Siliconised needle bevel for smooth insertion.
- Primacath facilitates multiple line through single IV access.
- Available in FEP/PTFE Catheter.
- Single use, Non pyrogenic, Sterile.
Specifications
| Ref/Art No. | Gauge | Colour Code | Ext. Dia. mm |
Catheter Length mm |
Flow Rate ml./min |
Packing Inner/Outer unit |
|---|---|---|---|---|---|---|
| IT0123-18 | 18G | Green | 1.3 | 45 | 90 | 40/400 |
| IT0123-20 | 20G | Pink | 1.1 | 32 | 60 | 40/400 |
| IT0123-22 | 22G | Blue | 0.9 | 25 | 33 | 40/400 |
| IT0123-24 | 24G | Yellow | 0.7 | 19 | 20 | 40/400 |
