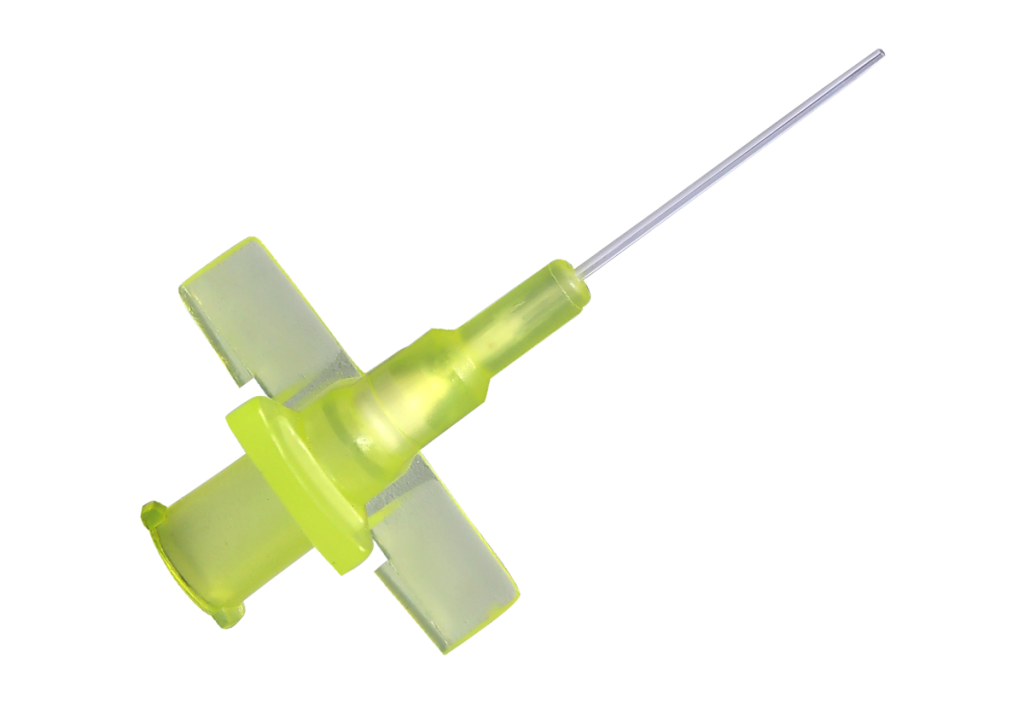

Primaneo Safety®

Art Reference No. IT0131

Not made with DEHP, Latex/Natural Rubber, PVC

Features and Benefits
  •  Inherently designed self-activating needle safety mechanism system that eliminates the chances of needle stick injuries and blood borne infections to the user and/or healthcare providers during needle withdrawal and disposal.
  • Designed to ensure Correct Orientation of Needle bevel and better control during Cannulation.
  • The device comprises a siliconized, ground Stainless Steel needles with ultra-thin, ultra-sharp and triple facet bevel to ensure smooth, atraumatic and painless venipuncture, and to improve patient’s comfort and reduce the occurrence of phlebitis.
  • the safety cannulas have been manufactured using thin-wall needle technology, which increases the amount of blood travelling up the cannula, as well as the rate at which it travels up the needle, during venipuncture. This significantly reduced the flashback time and thus venipuncture confirmation.
  • The device is made of best-in-class, kink resistant catheters with extremely smooth inner and outer surface facilitate atraumatic venipuncture.
  • IV catheter material available in PUR and FEP/PTFE – PUR for a softer and more comfortable indwelling performance, FEP/PTFE as alternative firmer material.
  • Catheters with radiopaque line facilitate the visualization under X-ray imaging system.
  • Inherently designed catheter tip aligns with the needle bevel to facilitate smooth transition from needle tip to catheter.
  • Inherently designed flexible flat wings for ease of fixation.
  • Inherently designed flip-top lid with needle-free access valve to facilitate bolus injection during infusion.
  • Inherently designed transparent flashback chamber for immediate confirmation of venipuncture.
  • Inherently designed for easy use.
Specifications
Colour Code. Gauge Ext. Dia.
(mm)
Length
Length mm
Flow Rate
ml./min
Packing
Inner/Outer unit
Orange 14 G 2.1 45 300 100/1000
Grey 16 G 1.7 45 200 100/1000
White 17 G 1.5 45 140 100/1000
Green 18 G 1.3 45 90 100/1000
Pink 20 G 1.1 32 60 100/1000
Blue 22 G 0.9 25 33 100/1000
Yellow 24 G 0.7 19 20 100/1000
Violet 26 G 0.6 19 15 100/1000
