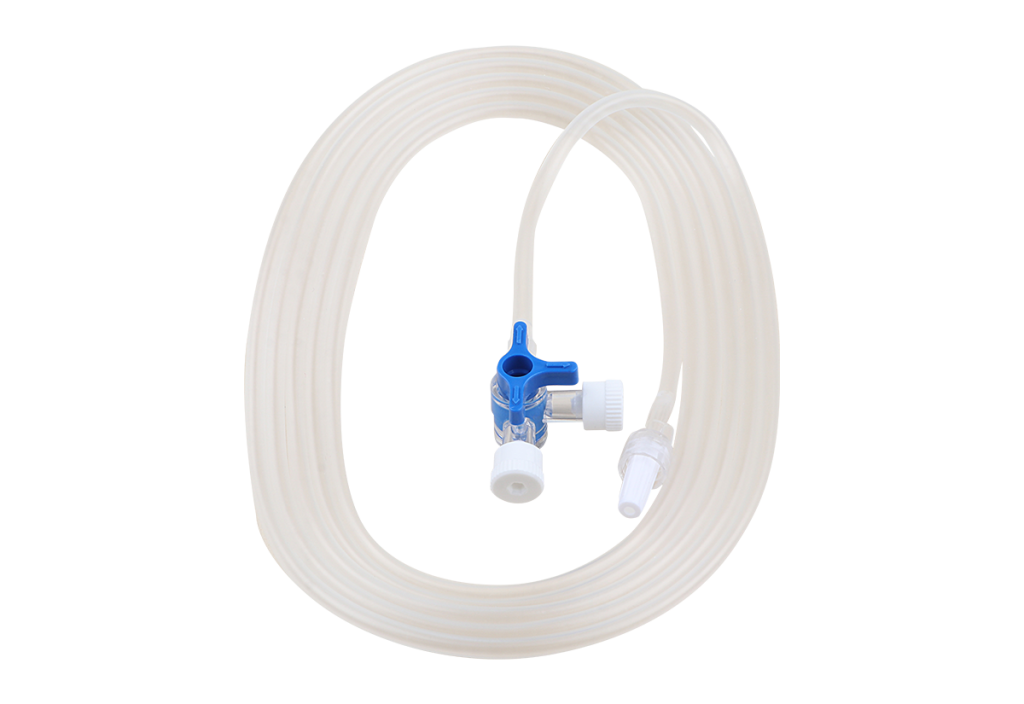

Link 3XT – Extension Tube
Low Pressure With Integrated 3 way Stopcock
Features and Benefits
- Provides extended IV Fluid pathway along with multiple access port during transfusion and infusion.
- Stopcock at one end and MLL luer connector at another end.
- Allowed 360° rotation.
- Pressure tested pneumatically and hydrostatically for up to 5 bars.
- Minimum priming volume.
- Link 3XT- I.D. 3.0mm & O.D. 4.0mm.
- Link 3XT is CE certified.
- Sterile, Non-Pyrogenic Tube.
Options Available:
- With Coiled extension tube (200cm).
- With one needle free injection site with tube length 10cm.
- With two needle free injection site with tube length 10cm.
Specifications
| Ref/Art No. | Variant Available | Tube Length | I.D./O.D. | Packing Inner/Outer unit |
|---|---|---|---|---|
| IT0701 | Straight | 10cm/ 20cm/ 25cm/ 50cm/ 100cm/ 150cm/ 200cm | 3.0mm/4.0mm | 50/500 |
| IT0702 | Coiled | 200cm | 3.0mm/4.0mm | 50/500 |
| IT0703-10 | With one needle free injection site | 10cm | 3.0mm/4.0mm | 50/500 |
| IT0704-10 | With two needle free injection site | 10cm | 3.0mm/4.0mm | 50/500 |
