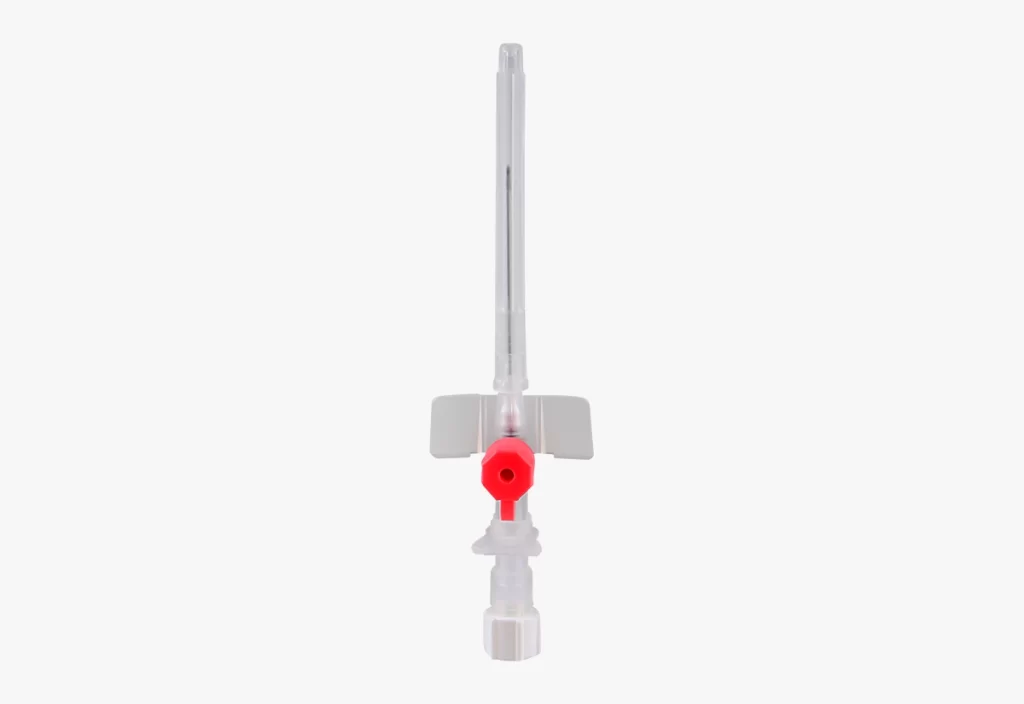

La-Med IV Cannula
Art Reference No. IT0125
Features and Benefits
- Biocompatible radio-opaque catheter for easy insertion and X-ray detection.
- Siliconised needle ensures smooth insertion and confirms successful venipuncture with instant quick flashback.
- Colour-coded injection port provided for easy identification of gauge size.
- The injection port features a specially designed double-hinged cap incorporating a recessed plug with a protective skirt to effectively prevent contamination when closed.
- The injection port has a one-way silicone retreating valve for extra medication by syringe without needle and to prevent backflow.
- The double-hinged port cap design does not obstruct during insertion or fixation and keeps the cap securely closed.
- Flexible, angled, and grooved wings allow easy fixation and prevent displacement of the cannula on the patient’s body.
- Available in FEP/PTFE catheter.
- Single use, non-pyrogenic, sterile.
Specifications
| Ref/Art No. | Gauge | Colour Code | Ext. Dia. (mm) | Catheter Length (mm) | Flow Rate (ml/min) | Packing (Inner/Outer Unit) |
|---|---|---|---|---|---|---|
| IT0125-14 | 14G | Orange | 2.1 | 45 | 300 | 100/1000 |
| IT0125-16 | 16G | Grey | 1.7 | 45 | 200 | 100/1000 |
| IT0125-17 | 17G | White | 1.5 | 45 | 140 | 100/1000 |
| IT0125-18 | 18G | Green | 1.3 | 45 | 90 | 100/1000 |
| IT0125-20 | 20G | Pink | 1.1 | 32 | 60 | 100/1000 |
| IT0125-22 | 22G | Blue | 0.9 | 25 | 33 | 100/1000 |
| IT0125-24 | 24G | Yellow | 0.7 | 19 | 20 | 100/1000 |
| IT0125-26 | 26G | Violet | 0.6 | 19 | 15 | 100/1000 |
