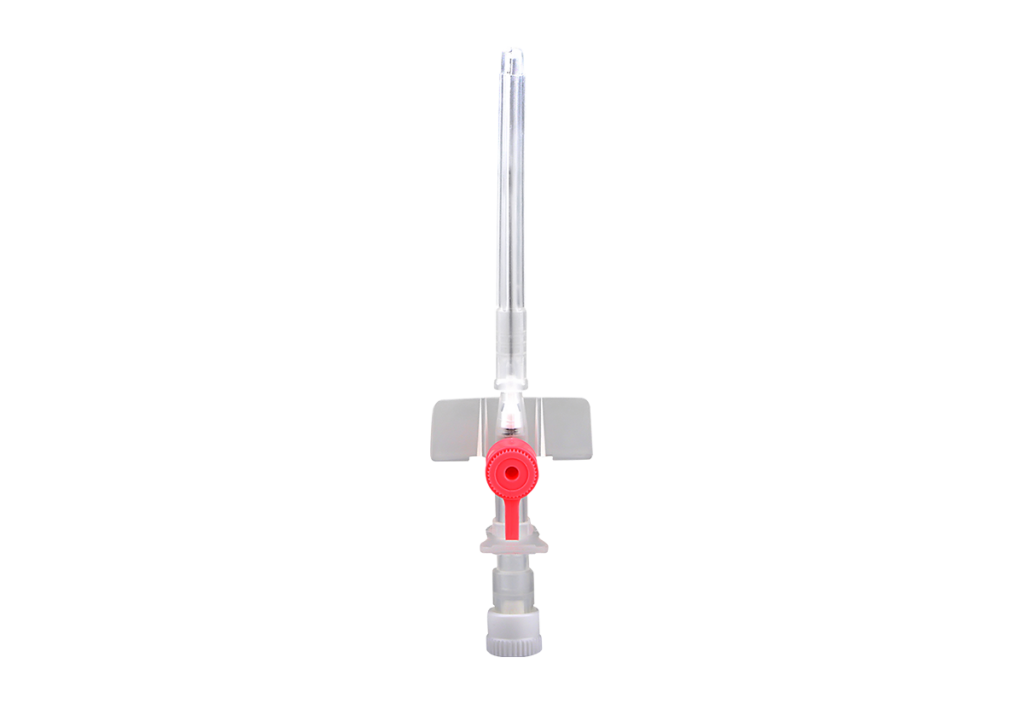

IV cannula with wings and with Port.
Features and Benefits
- Biocompatible radio opaque catheter for easy insertion and X-ray detection.
- Siliconised needle bevel provide easy and successful venipuncture with Instant Quick flash back confirmation.
- Low Profile Colour coded Injection port cap.
- Provide Colour coded injection port for easy identification of Gauze size.
- The injection port is provided with specially designed double hinged cap incorporating a recessed plug with a protective skirt to effectively prevent contamination when the valve is closed.
- The injection Port has one way silicone retreating valve for extra medication by syringe without needle and to prevent back flow.
- The double hinge port cap design does not obstruct during insertion and fixing and keep the cap closed effectively.
- Flexible angled and grooved wings allows easy fixation and prevent displacement of cannula over the patient’s body.
- Available in FEP/PTFE Catheter.
- Single Use, Non Pyrogenic, Sterile.
Specifications
| Ref/Art No. | Gauge | Colour Code | Ext. Dia. mm | Catheter Length mm | Flow Rate ml./min | Packing Inner/Outer unit |
|---|---|---|---|---|---|---|
| IT0109-14 | 14G | Orange | 2.1 | 45 | 300 | 100/1000 |
| IT0109-16 | 16G | Grey | 1.7 | 45 | 200 | 100/1000 |
| IT0109-17 | 17G | White | 1.5 | 45 | 140 | 100/1000 |
| IT0109-18 | 18G | Green | 1.3 | 45 | 90 | 100/1000 |
| IT0109-20 | 20G | Pink | 1.1 | 32 | 60 | 100/1000 |
| IT0109-22 | 22G | Blue | 0.9 | 25 | 33 | 100/1000 |
| IT0109-24 | 24G | Yellow | 0.7 | 19 | 20 | 100/1000 |
| IT0109-26 | 26G | Violet | 0.6 | 19 | 15 | 100/1000 |
